WiSCOPE CYSTO NEXT-GEN
Single-Use Digital Flexible HD Cystoscope
Overview
The new WiScope Single-Use Digital Flexible HD Cystoscope delivers high resolution digital images and allows with its navigation capability to visually assess the urethra and the urinary bladder. With a new scope for every patient the WiScope ensures dependable performance for every case, no risk of cross-contamination, no degradation of scope performance over time, no timely and costly reprocessing and no scope repairs.
The WiScope Cystoscope can be used with its own monitor or with your existing OR monitor. The 210° dual deflection allows for excellent visibility and accessibility to treat a variety of urological conditions, while the lightweight, ergonomic handle help reduce operating fatigue.
3D semi-robotic Arm with integrated electronic-mechanical tracking
The ARTEMIS device differs from others in that it incorporates a semi-robotic mechanical arm with electronic encoders used to scan, digitize and track the prostate in real-time as well as to navigate needles prospectively and precisely.
Advantages
- No risk of cross contamination
- No timely and costly reprocessing
- No delays due to unavailability
- No costly maintenance and repairs
- Ergonomic, lightweight handpiece

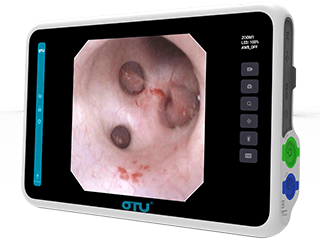

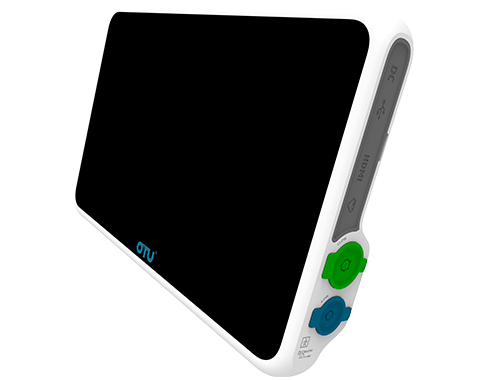

WiScope Tablet
- Leightweight and portable
- The WiScope Tablet provides the LED light, processes the images from the cystoscope and displays them in real time on the screen. Images can be taken and stored with the device
-
Standard cystoscopes and HD cystoscopes can be connected

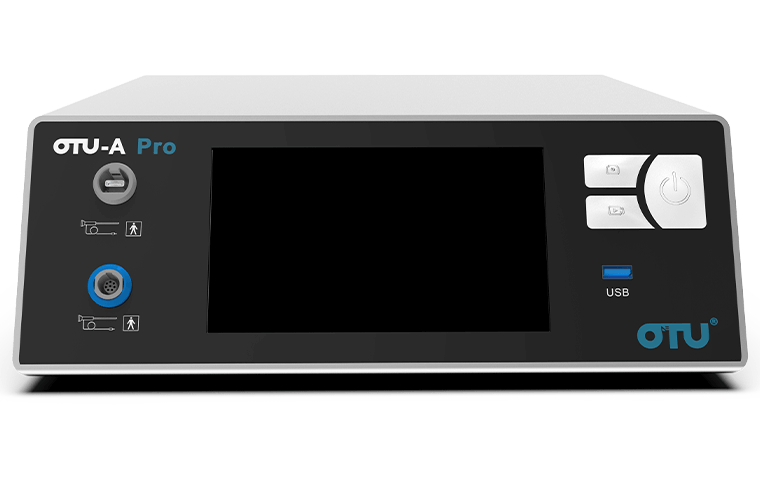

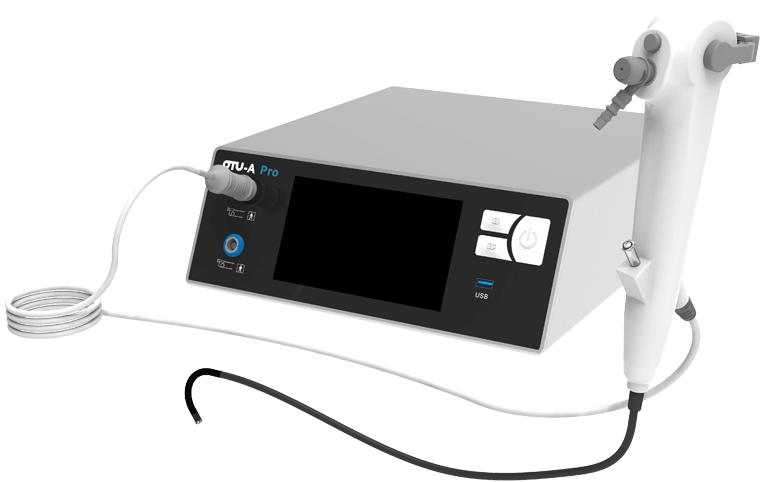

WiScope HD Image System
- The new WiScope HD image system OTU-A Pro provides the LED light, processes images from the cystoscope and outputs the video signal to a display. Images can be taken and stored with the device. It can be integrated in almost any existing endoscopy tower
-
Standard cystoscopes and HD cystoscopes can be connected
| Image System Specifications | |
| Voltage | 100 ... 240 V AC |
| Frequency | 50/60 Hz |
| Input Current | 1.0 - 1.5 A |
| Key Functions |
Brightness Increase / Decrease Zoom Image Freezing White Balance Recording Videos and Taking Snapshots Storage of Images and Videos File Management / Database Functions |
| Video Output |
CVBS, SDI, DVI, HDMI |
| Dimensions (WxHxD) |
36 x 12 x 33.5 cm |
| Weight |
4.9 kg |
See more
Close

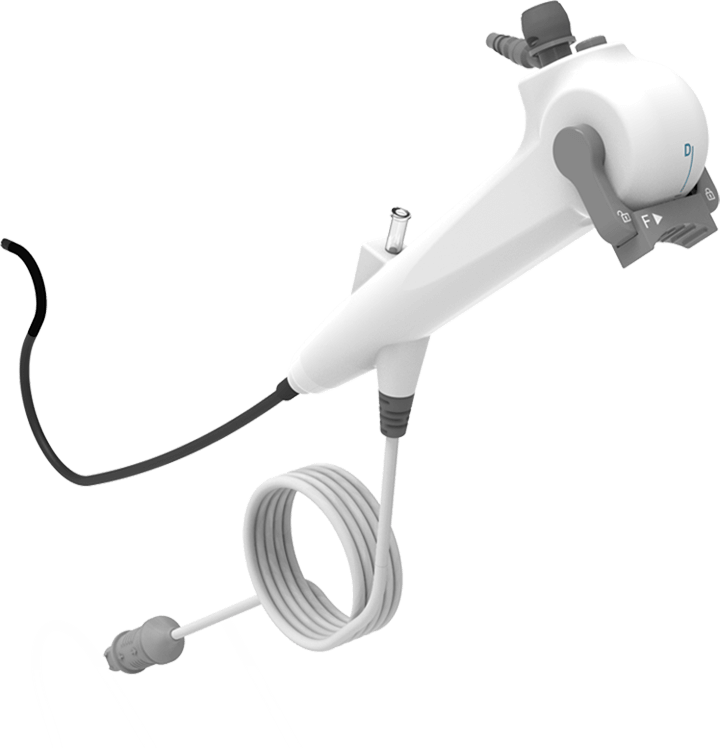

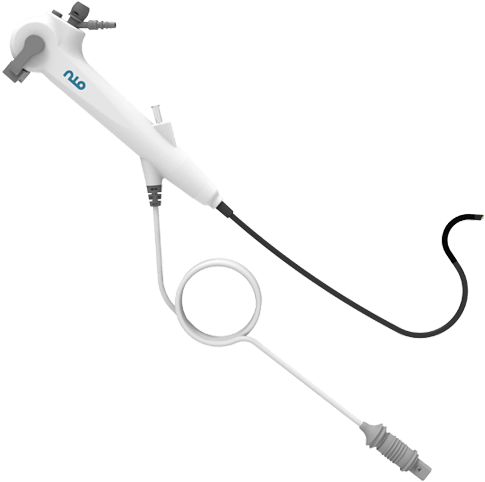

WiScope Single-Use Digital Flexible HD Cystoscope
- WiScope HD Cystoscope, 15.3 Fr outer diameter, 6.6 Fr working channel at 6 o’clock position, reverse deflection
| Cystoscope Specifications | |
| Resolution Video Camera | 1280 x 720 Pixels |
| Field of View | 130° |
| Direction of View | 0° |
| Depth of Field | 2 - 50 mm |
| Distal Tip Diameter | 9.0 Fr |
| Insertion Tube Outer Diameter | 15.3 Fr |
| Working Channel Diameter | 6.6 Fr |
| Working Channel Position | 6 o‘clock |
| Angulation Range | 210° Up / 210° Down |
| Working Length of Shaft | 380 mm |
| Total Length | 625 mm |
See more
Close

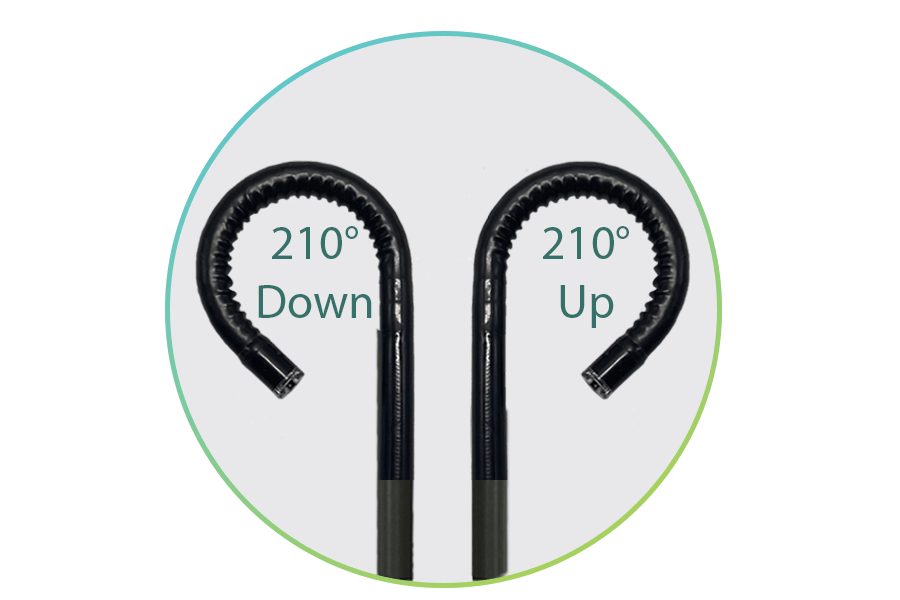

Flexion
- Maximal deflection of 210° in two directions
- Excellent maneuverability
- Self locking deflection angle

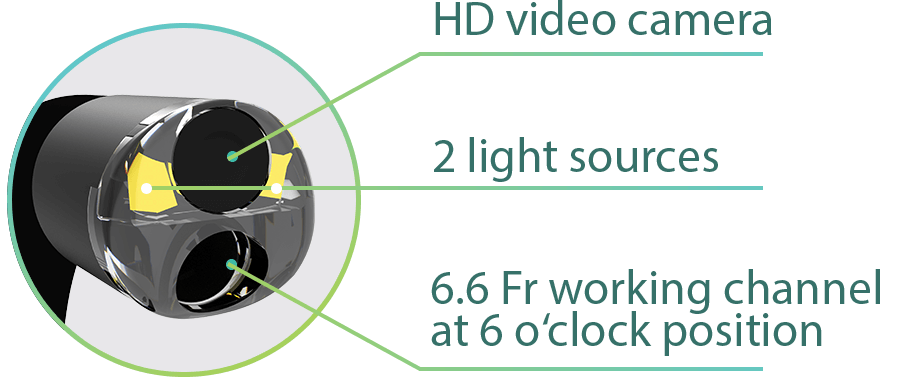

Working Channel
- HD Image resolution of 1280 x 720 pixels
- Working channel at 6 o'clock for better visibility when working with instruments

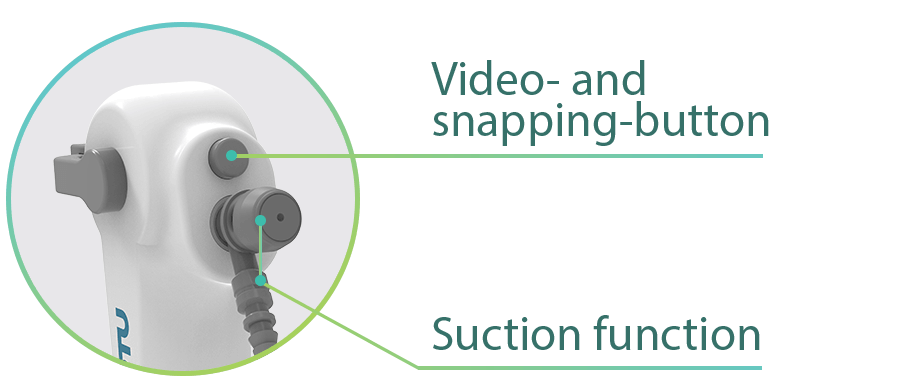

Image Button / Suction Function
-
New button for taking snapshots and recording videos
- New suction function; easy to use with button to aspirate liquids

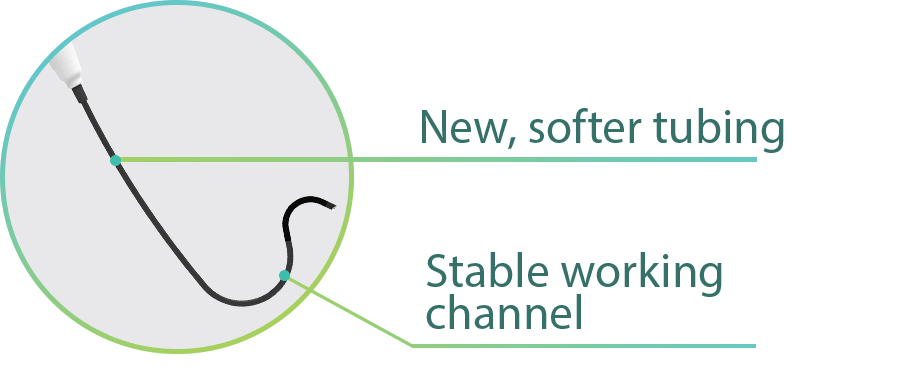

New Softer Tubing
- Patient and instrument friendly

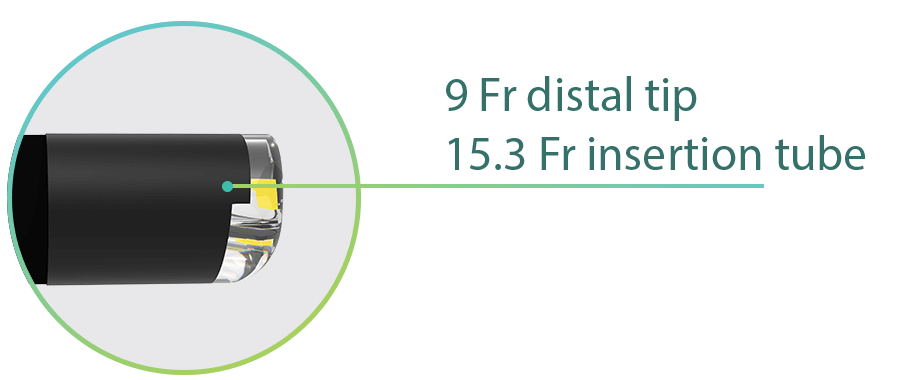

Distal Tip
- Bullet-like outline for easy insertion
- 1.5 mm clear end for better light diffusion
- 1:1 implementation of hand movements trough the distal end
