SALIVASCOPE
Modular Micro Endoskopy System for Salivary Glands, TMJ and small Joints
Overview
The modular approach of Polydiagnost endoscopes provides a toolbox enabling users to customize their system by simply selecting the modules specific to their needs.
By the use of one PolyShaft, a sterile working and irrigation channel, per application the risk inherent in reprocessing this critical section of endoscopes is neutralized. The valuable optics are reusable, free of any lumen and easy to sterilize. The switch between the PolyShafts from diagnosis to therapy and vice versa requires only seconds. The toolbox also includes miniaturized instruments allowing interventions which are unique in the medical world.
The Micro Endoscopy System follows holistic thinking in its portfolio, all modules are included from which you may select your individual kit. Subsequent additions and extensions are possible at any time.
3D semi-robotic Arm with integrated electronic-mechanical tracking
The ARTEMIS device differs from others in that it incorporates a semi-robotic mechanical arm with electronic encoders used to scan, digitize and track the prostate in real-time as well as to navigate needles prospectively and precisely.
INDICATION
In the head-neck area the SalivaScope micro endoscopy system allows diagnostic and therapeutic interventions in the salivary glands, the temporomadibular joint (TMJ arthrocentesis) as well as in plastic surgery.

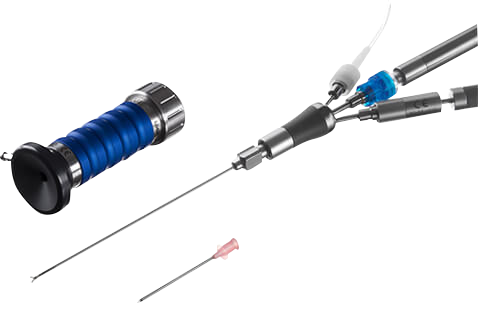

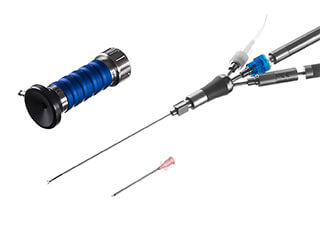

SalivaScope Basic System

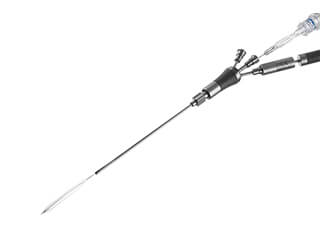

The basic system consists of a 6'000 or a 10’000 pixel optic, a matching ocular, a handpiece, optic shifter, 3-joint arm and a light connection cable. Together with the corresponding disposable materials, the system can be operated diagnostically and is ready for therapeutic use, such as with dilatation balloons, saliva stents, foreceps or a corresponding diode laser.

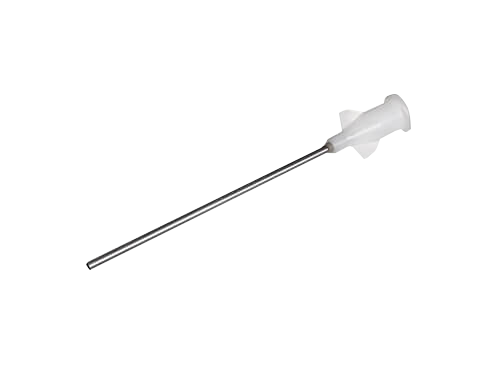

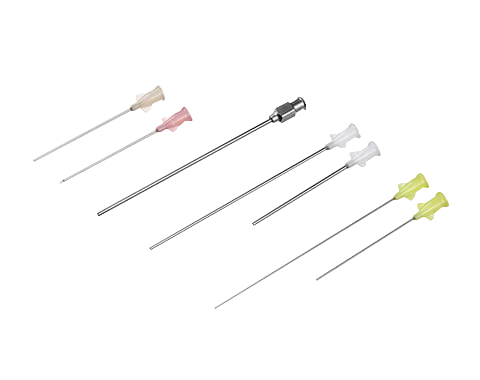

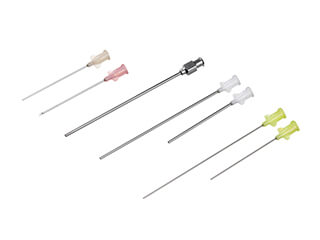

PolyShaft
The PolyShaft are sterile packaged disposable cannula, which are used together with the basic system. Depending of the indication there are 50 mm or 90 mm PolyShafts in diameters between 0,75 and 2 mm available.
PolyShaft with 50 mm working length
Specially designed for an easy insertion of the optic. Application with Handle Short, PD-DS-1315, disposable, sterile packed
| Order No. | Size [mm] | Inner / outer Ø |
| PD-DS-1030 | 0.75 / 50 | 0.65 / 0.75 mm |
| PD-DS-1035 | 0.9 / 50 | 0.7 / 0.9 mm |
| PD-DS-1040 | 1.15 / 50 | 1.05 / 1.15 mm |
| PD-DS-1042 | 1.6 (16G) / 50 | 1.4 / 1.6 mm - for TMJ / Arthroskopy |

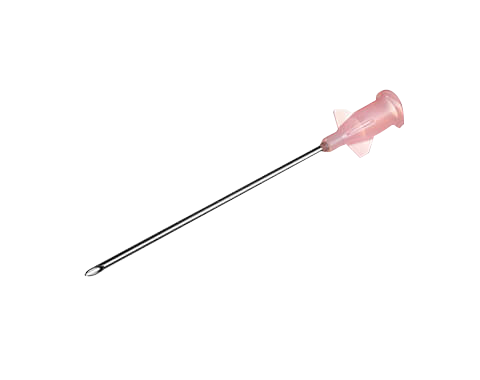

| PD-DS-1065 | 1.3 (18G) / 50 sharp tip | 1.0 / 1.3 mm - for TMJ / Arthrozentesis |
PolyShaft with 90 mm working length
Specially designed for an easy insertion of the optic. Application with Handle Middle, PD-DS-1320, disposable, sterile packed
| Order No. | Size [mm] | Inner / outer Ø |
| PD-DS-1000 | 0.65 / 90 | 0.55 / 0.65 mm |
| PD-DS-1005 | 0.75 / 90 | 0.65 / 0.75 mm |
| PD-DS-1010 | 0.9 / 90 | 0.7 / 0.9 mm |
| PD-DS-1015 | 1.15 / 90 | 1.05 / 1.15 mm |
| PD-DS-1020 | 1.6 / 90 | 1.4 / 1.6 mm |
| PD-DS-1025 | 2.0 / 90 | 1.8 / 2.0 mm |
See more
Close
Accessories

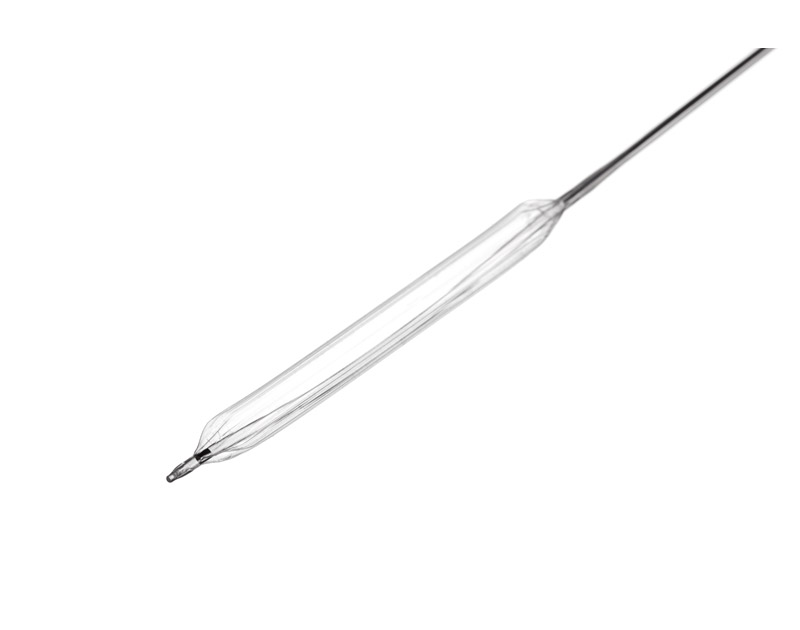

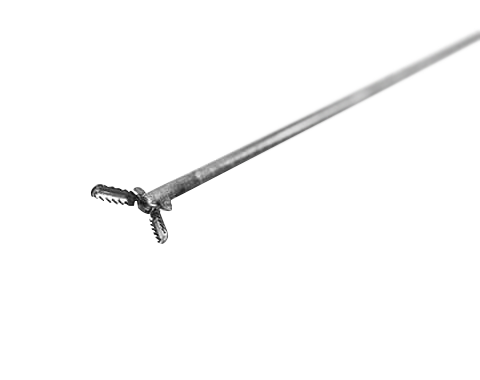

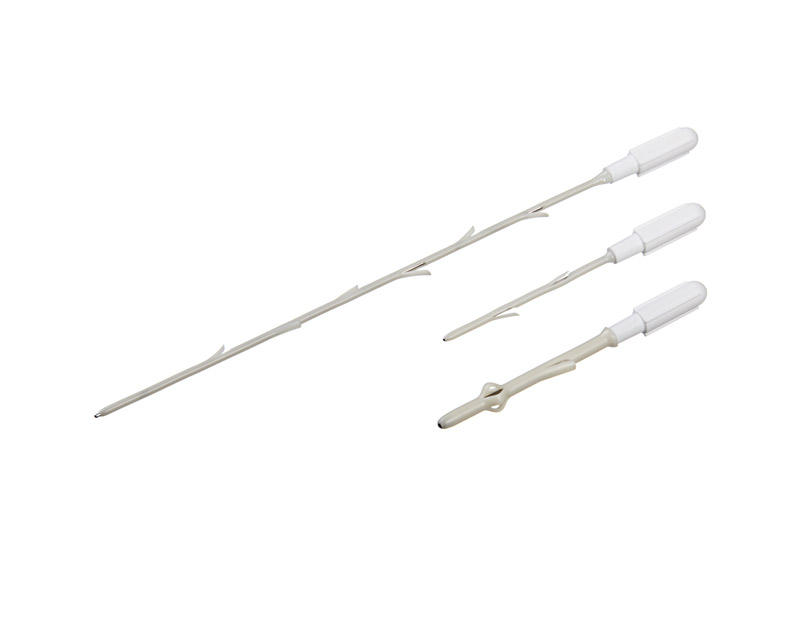

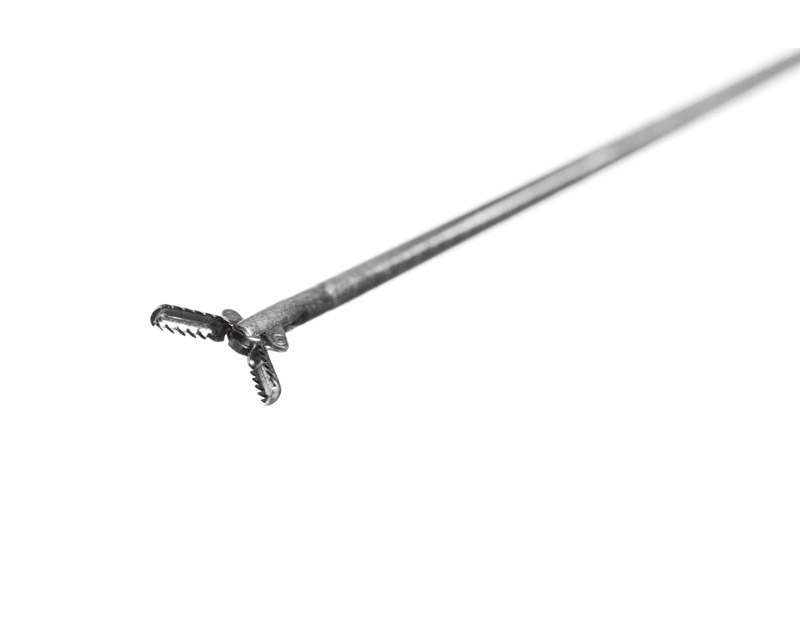

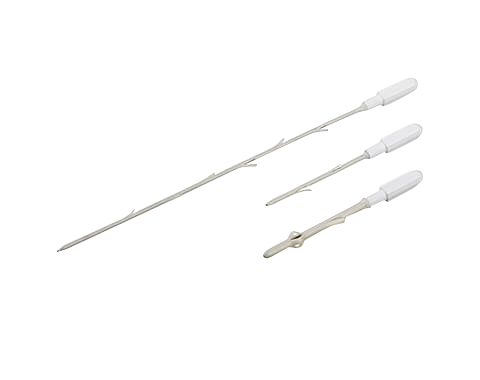

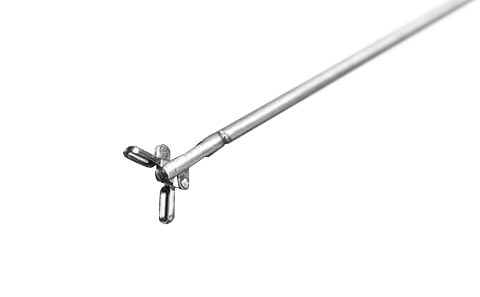

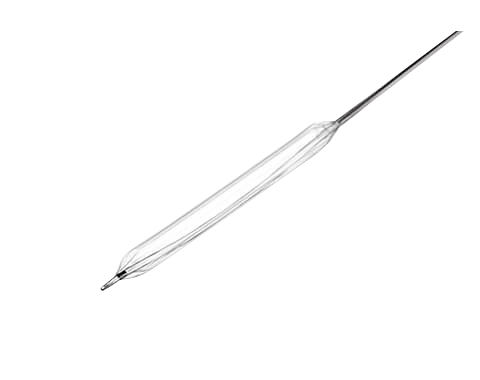

Dilatation balloons, saliva stents, various graspers or forceps, etc. are only some of the possible therapy devices which are used in the SalivaScope parallel to the optics and thus allow working under sight.

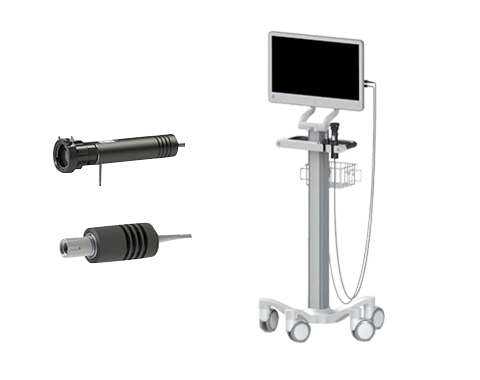

Panel-PC 21,5 “ Inkl
The components of the XION Panel PC have been developed for image data- acquisition and -presentation of fiber endoscopes and can also be used in confined spaces due to their compact design.
Fanless, the system enables noise-free operation as a stand-alone solution or in expansion of existing installations.
