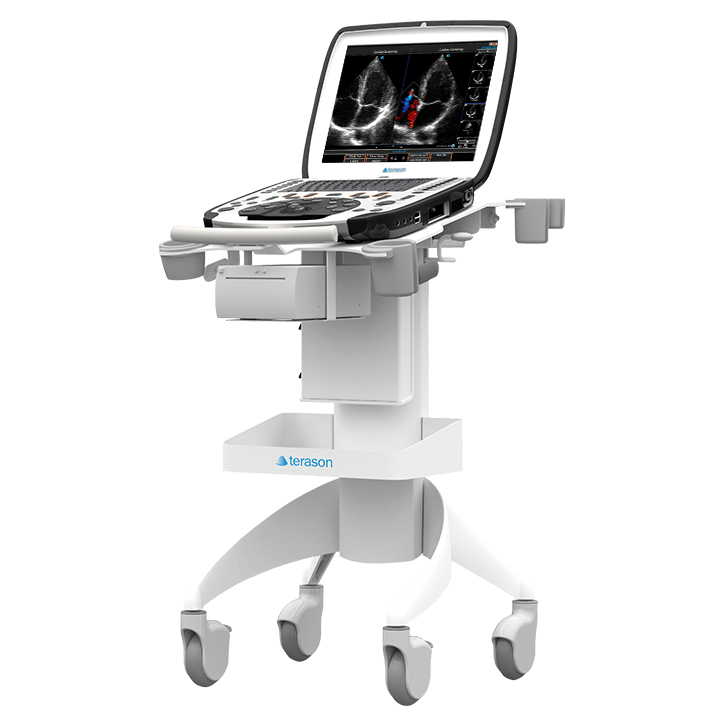

TERASON 3300
uSmart NexGen Portable Ultrasound
Overview
Terason® introduces the new look of ultrasound. A fusion of Smart Technology, Smart Resolution Imaging, and an advanced SuperHarmonicTM imaging engine deliver an innovative and intuitive system with elite performance.
Terason uSmart 3300 NexGen Ultrasound System affords quick and easy start-up, ideal for Urology, Anesthesia, Breast, Cardiology, Critical Care, Emergency Medicine, Musculoskeletal, OB/GYN, Vascular and more. With advanced computer technology and our proprietary design, the uSmart 3300 NexGen is a powerful diagnostic ultrasound system.
3D semi-robotic Arm with integrated electronic-mechanical tracking
The ARTEMIS device differs from others in that it incorporates a semi-robotic mechanical arm with electronic encoders used to scan, digitize and track the prostate in real-time as well as to navigate needles prospectively and precisely.
Specification
- 89 x 396 x 389 mm (H x D x W), 6,7 kg
- 15" Backlit Polarized Anti-Glare LCD, Ultra-Wide Viewing Angle 1
- 1 TB SSD
- Processor: 2.5 GHz, Intel® Core™ i7
- 8G RAM DDR3 Onboard Memory
- Input / Output: 4 3.0 USB-A, 2 HDMI, Ethernet
- Export: to USB, Network Folder, CD/DVD
- Operates on AC or internal battery power
- ECG and Auxiliary Ports
- uConnect® Remote Capabilities
- Windows® 10 Operating System
- Cold Boot-Up Time: < 55 Seconds

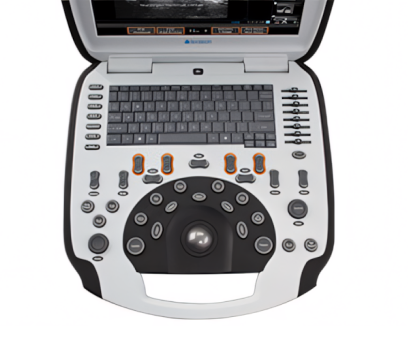

Smart Console Design
A familiar layout just got better!
Reliable and responsive high-quality buttons and a durable, impact-resistant design for added protection are coupled with ergonomic soft key positioning and toggle buttons that reduce keystrokes, providing better productivity and efficiency. An integrated battery also allows for more than 1-hour of plug-free imaging.
Imaging Modes
- 2D (B-Mode)
- M-Mode
- Anatomical M-Mode
- Color Doppler
- Pulsed Wave Doppler
- Power Doppler
- Directional Power Doppler
- Continuous Wave Doppler
- Tissue Doppler
- Tissue Harmonic Imaging with SuperHarmonics™
SuperHarmonic Imaging
The new SuperHarmonic imaging capability with enriched detail, clarity, contrast resolution, and border definition is a (more) powerful imaging experience.

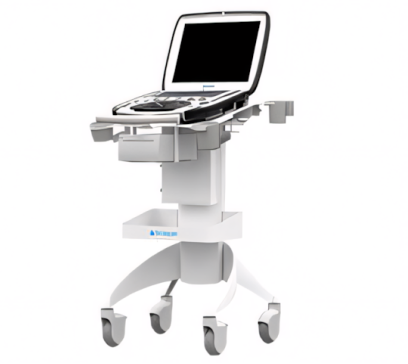

Mobile Cart
The ergonomic Mobile Cart provides a high-quality portable yet secure solution for Terason’s uSmart 3300 NexGen Ultrasound System. Made with aircraft-grade aluminum and cold-rolled steel, materials that were selected based on use and environment. Adjust system height to suit your needs.
The system can be adjusted from a low position of 80 cm, similar to the height of an office desk, up to 150 cm, an appropriate height for scanning while standing.
Open architecture and uConnect® Remote Capabilities
Terason systems are truly open architecture. This unique feature delivers flexibility and efficiency in image processing, reporting, communications and system integration. Easily add third-party software, or connect to PACS and EMR systems.
A Family of compatible transducers
Our family of lightweight and ergonomic transducers is ideal for easy scanning.
| Transducer | Image | Applications | Bandwidth |
|
15L4 Smart MarkTM Linear Array |
 |
Arterial, Breast, Carotid, Dialysis Access, Lung, MSK, Neonatal Hip, Nerve Block, Thyroid, Vascular Access, Venous |
15 – 4 MHz |
|
16L5 Smart MarkTM Linear Array |
 |
Breast, Lung, MSK, Nerve Block, Vascular Access |
16 – 5 MHz |
|
8L2 Smart MarkTM Linear Array |
 |
Arterial, Carotid, Venous |
8 – 2 MHz |
|
4V2 Phased Array |
 |
Cardiac, FAST, TCD |
4 – 2 MHz |
|
8V3 Phased Array |
 |
Pediatric Cardiac, TCD |
9 – 3 MHz |
|
5C2 Curved Array |
 |
Abdominal, FAST, Fetal Cardiac, MSK, OB/GYN, Renal, Thyroid, Visceral |
5 – 2 MHz |
|
9MC3 Curved Array |
 |
Abdominal, Cardiac |
9 – 3 MHz |
|
10EC4 Endocavity |
OB/GYN, Prostate | ||
|
8BP4 Broadband Biplane Transrectal, |
 |
Prostate Transperineal, Brachy | |
|
16HL7 High Frequency Linear Array |
 |
MSK, Venous |
16 – 7 MHz |
| Pedoff |  |
Cardiac | |
|
8TE3 Transesophageal |
 |
Cardiac |
8 – 3 MHz |
