Terason uSmart 3200T PLUS
The new wave in portable ultrasound
Overview

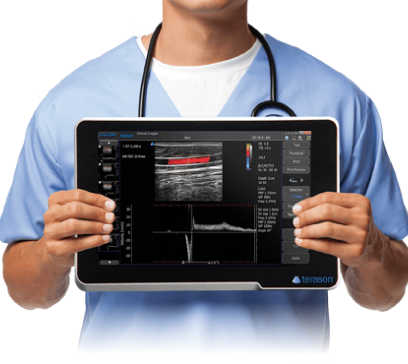

The uSmart 3200T Plus, the latest model in the mobile uSmart series, reflects Terason’s commitment to develop novel, ease-of-use diagnostic tools, that can improve patient outcomes and help providers deliver better healtcare.
With its 15.7” touch screen, an intuitive interface, unparalleled image clarity, smart gestures and an open Windows architecture, the uSmart 3200T Plus works with all Terason probes across multiple clinical applications, optimizing the workflow and increasing the productivity for everyday clinical needs.
3D semi-robotic Arm with integrated electronic-mechanical tracking
The ARTEMIS device differs from others in that it incorporates a semi-robotic mechanical arm with electronic encoders used to scan, digitize and track the prostate in real-time as well as to navigate needles prospectively and precisely.
Focussed on you
- 15.7” Widescreen
- Sealed, Cleanable Surface
- 10-Point Multi-Touch Screen
- Durability Tested
- Hot-Swappable Battery
- Fast Boot-Up Time
- ECG Capabilities
- 1 TB (capacity) SSD
- uConnect® Remote Capabilities
- Intel® Core™ i7 CPU with 16GB RAM
- Open Windows 10 architecture
- Smart Gestures™
- Wi-Fi, Bluetooth and Wired Connectivity
- 3x USB-A, USB-C and mini HDMI Ports
- Multi-Probe Connector Kit in combination with the cart
- DICOM 3.0
- Compatible with all Terason Transducers
- Bitlocker™ Drive Encryption Capability

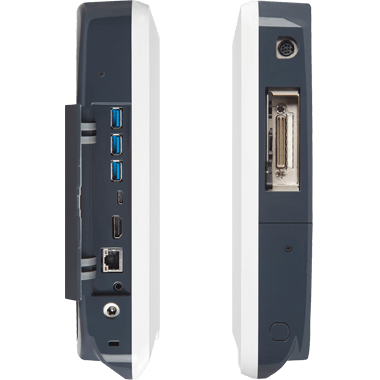

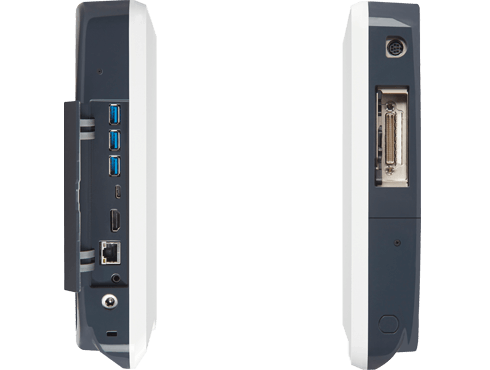

Terason uSmart 3200T Plus Side Ports
Left side:
- Power supply
- Ethernet connection
- Mini HDMI Port
- USB-C
- 3 x USB-A
Right side:
- ECG Capabilities
- Ultrasound probe socket

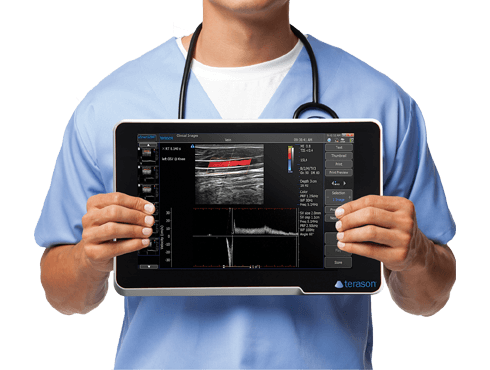

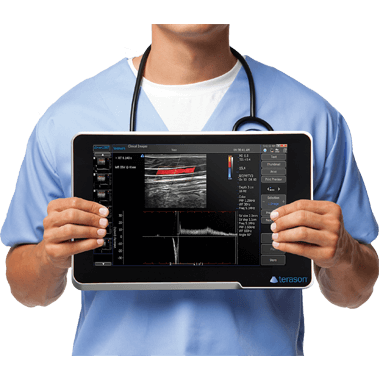

Capacitive Touch Screen
The uSmart 3200T PLUS NexGen monitor utilizes the technology of capacitive multi-touch screen and Advanced Hyper Viewing Angle (AHVA) LCD. The AHVA allows the user to view the image from multiple angles and heights without losing resolution. The capacitive multi-touch allows the user to perform gestures like pinching and stretching while wearing medical gloves. This technology also offers the option of using a stylus for precision input.

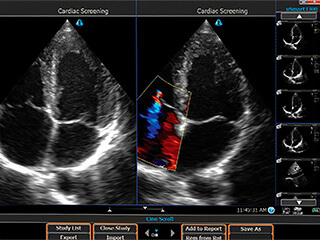

Imaging Modes
- 2D (B-Mode)
- M-Mode
- Anatomical M-Mode
- Color Doppler
- Pulsed Wave Doppler
- Power Doppler
- Directional Power Doppler
- Continuous Wave Doppler
- Tissue Doppler
- Tissue Harmonic Imaging with SuperHarmonics™

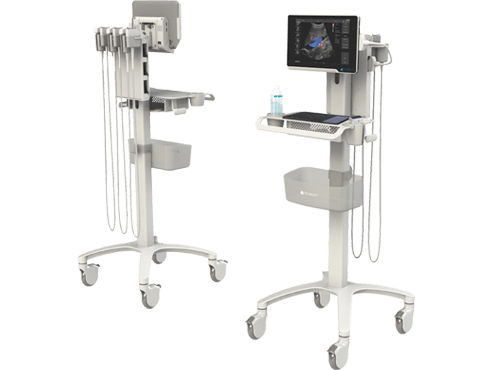

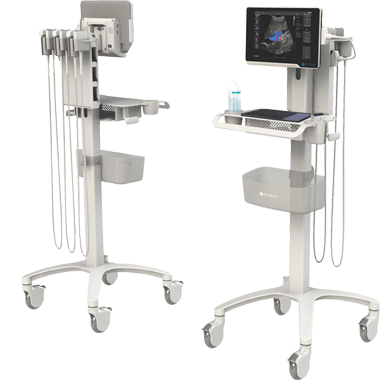

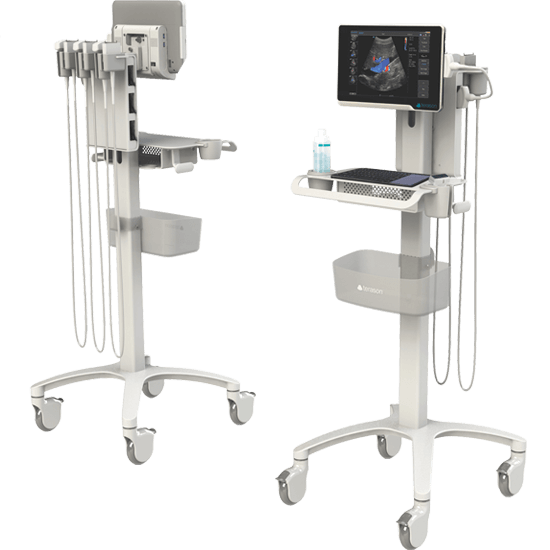

Mobile Cart II
Terason’s new Mobile Cart II with its ergonomic features provides a high-quality yet secure solution for Terason’s uSmart 3200T Plus Ultrasound Systems.
With its touch screen as well as keyboard and mouse connectivity, the optional multiprobe connector kit and the DICOM interface, it is the perfect solution for both, a truly mobile device as well as the integrated ultrasound system in any clinical setting.
Cart Design and Ergonomics
- Multi-Probe Connector Kit (Optional)
- Adjustable for both standing and seated procedures
- Three active and three storage probe and connector holders are designed to hold both probe and connector for ease-of-use and to minimize clutter
- Thin, Sleek Body Style
- Mobile Design
- 4-Wheel Steering for Excellent Mobility
- 4 Locking Wheels
- Shelf with Rounded Corners and gel holder
- On-Cart Storage Basket
- Transducer Connector Holders with Cable Management Hooks
See more
Close
Open architecture and uConnect® Remote Capabilities
Terason systems use a Windows-based operating system that delivers flexibility and efficiency in image processing, reporting, communication and system integration. Terason’s systems can be integrated into the existing communication infrastructure or can operate as standalone workstations within hospitals or at remote locations. Our exclusive uConnect® remote diagnostic program can create an online connection with a Terason support representative in seconds.

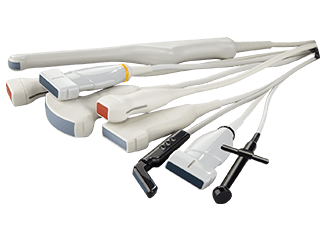

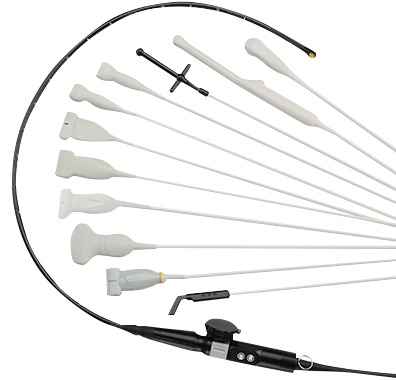

A Family of compatible transducers
Our family of lightweight and ergonomic transducers is ideal for easy scanning.
| Transducer | Image | Applications | Bandwidth |
|

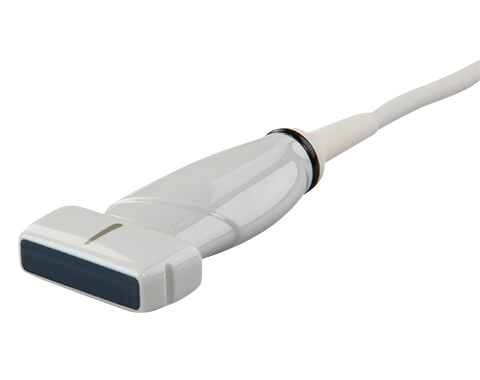

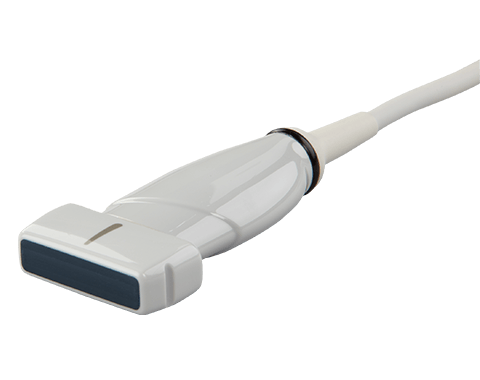

15L4 Smart MarkTM Linear Array |
 |
Arterial, Breast, Carotid, Dialysis Access, Lung, MSK, Neonatal Hip, Nerve Block, Thyroid, Vascular Access, Venous |
15 – 4 MHz |
|

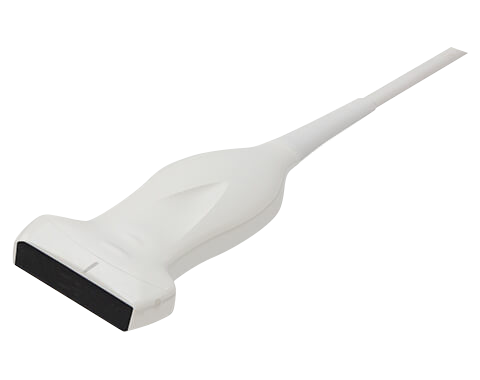

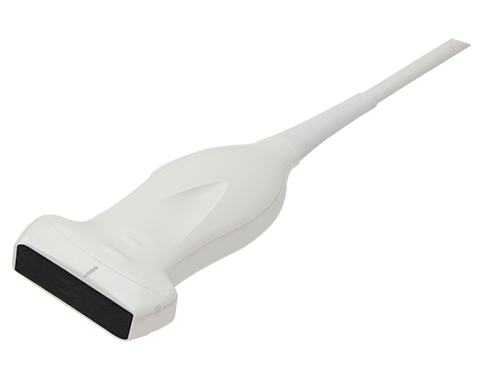

16L5 Smart MarkTM Linear Array |
 |
Breast, Lung, MSK, Nerve Block, Vascular Access |
16 – 5 MHz |
|

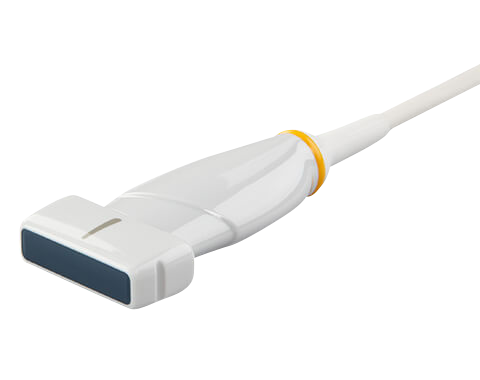

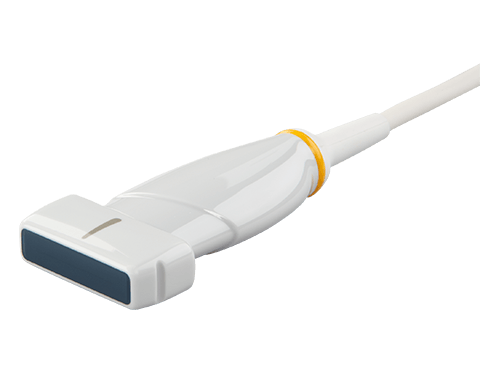

8L2 Smart MarkTM Linear Array |
 |
Arterial, Carotid, Venous |
8 – 2 MHz |
|

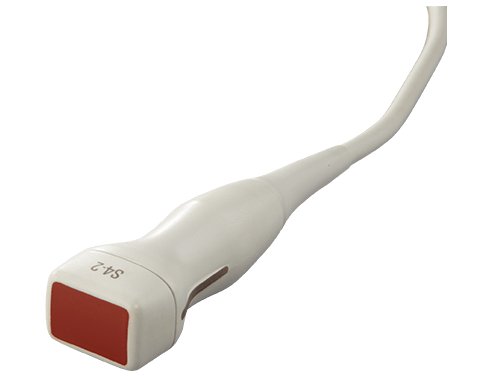

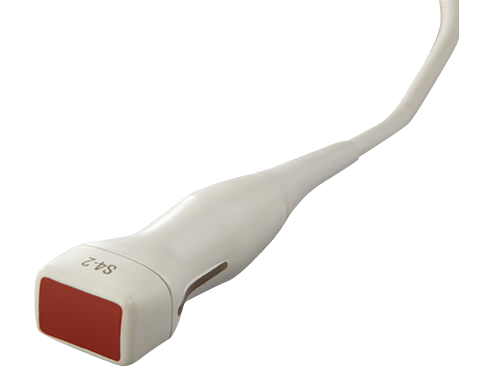

4V2 Phased Array |
 |
Cardiac, FAST, TCD |
4 – 2 MHz |
|

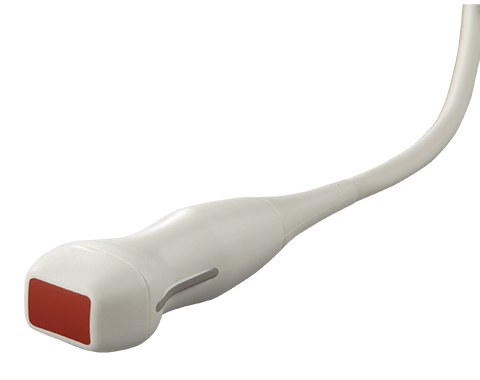

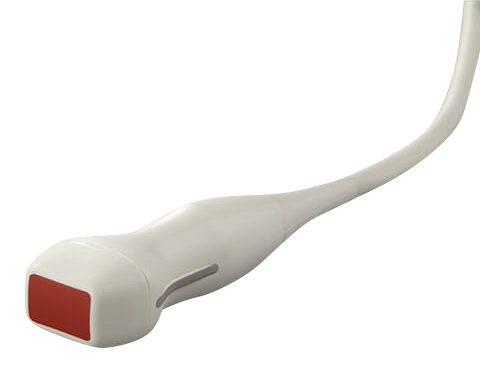

8V3 Phased Array |
 |
Pediatric Cardiac, TCD |
9 – 3 MHz |
|

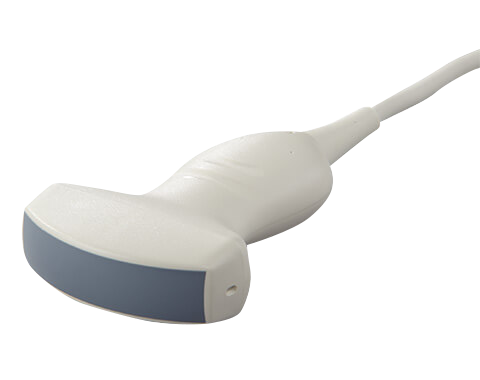

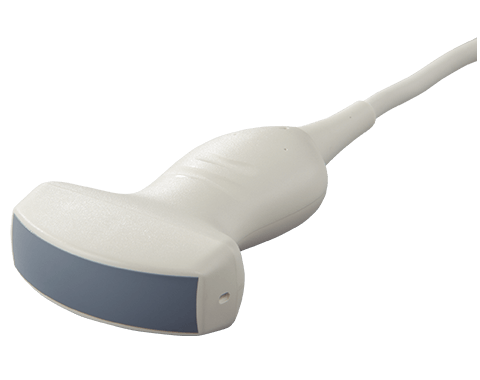

5C2 Curved Array |
 |
Abdominal, FAST, Fetal Cardiac, MSK, OB/GYN, Renal, Thyroid, Visceral |
5 – 2 MHz |
|

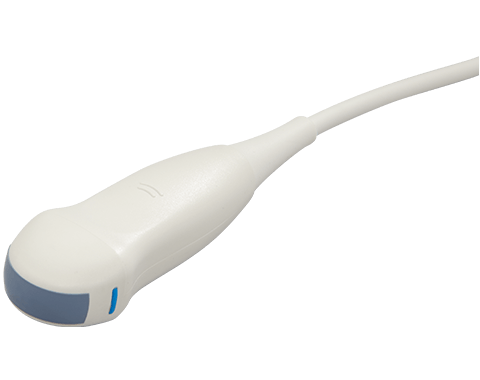

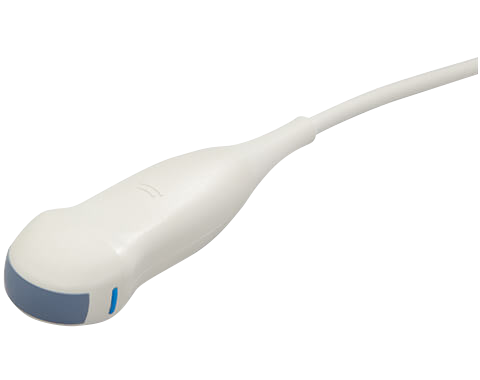

9MC3 Curved Array |
 |
Abdominal, Cardiac |
9 – 3 MHz |
|
10EC4 Endocavity |
OB/GYN, Prostate | ||
|

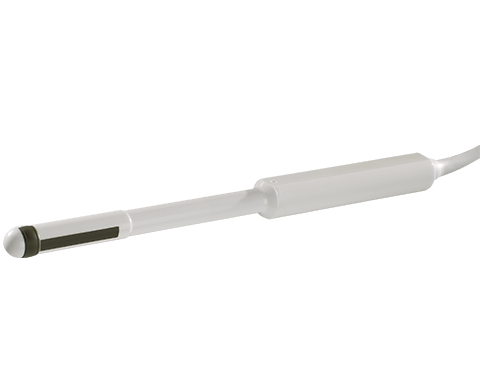

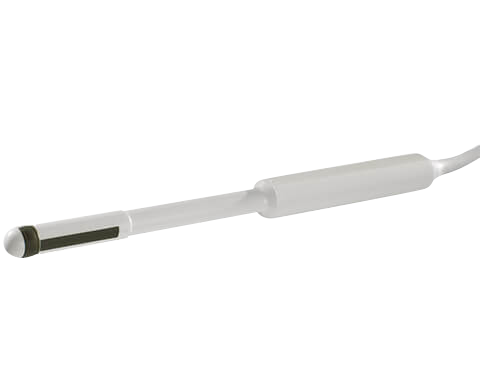

8BP4 Broadband Biplane Transrectal, |
 |
Prostate Transperineal, Brachy | |
|
16HL7 High Frequency Linear Array |
 |
MSK, Venous |
16 – 7 MHz |

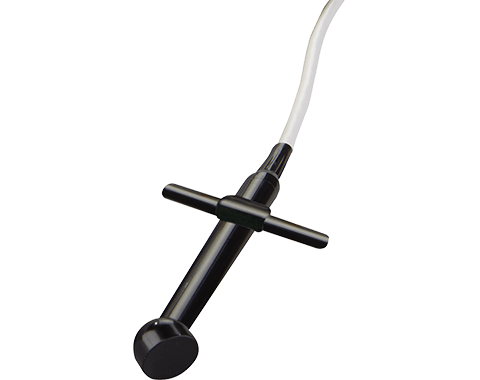

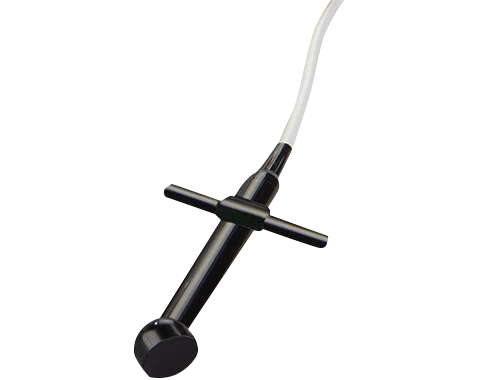

| Pedoff |  |
Cardiac | |
|

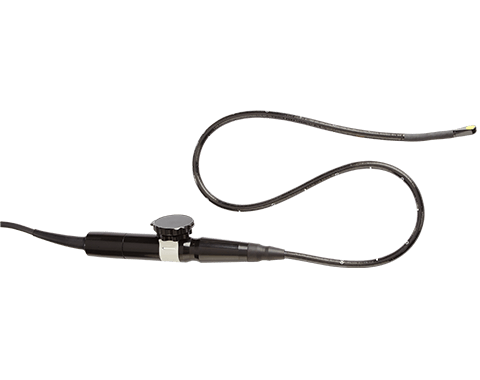

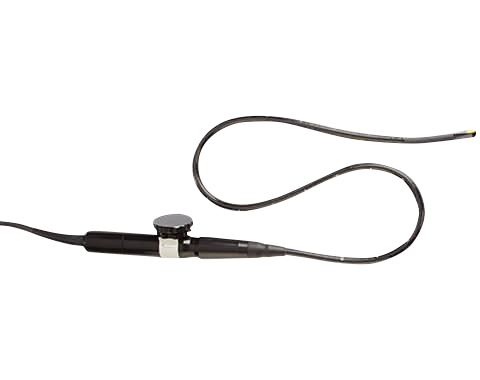

8TE3 Transesophageal |
 |
Cardiac |
8 – 3 MHz |
